There's that annoying 2 minute delay at the end of a wash. Why is this?
A T • February 9, 2020
Well, ultimately, it's to stop you from putting your hand into a washing machine at full spin (very dangerous), but here's Just a brief explanation of how an old-fashioned washing machine door lock works. (One for the technical geeks who might be interested in this sort of thing!)
Most modern washing machines now have an instant door lock so there's no delay in getting the washing out at the end of the cycle. As soon as the machine stops, the door releases.
These locks also have the added advantage that you can usually pause the wash and add items, such as when you find something that you forgot to put in the machine at the beginning.
However, older machines and lower specification washing machines have a lock which stays locked for around 2 minutes. That short time can seem an age when you're waiting to get the washing out.
I just wanted to put up an interesting explanation of how they work.
When you start the appliance on a wash programme, the machine needs to check that the door is closed and it needs to prevent the door from opening during the cycle.

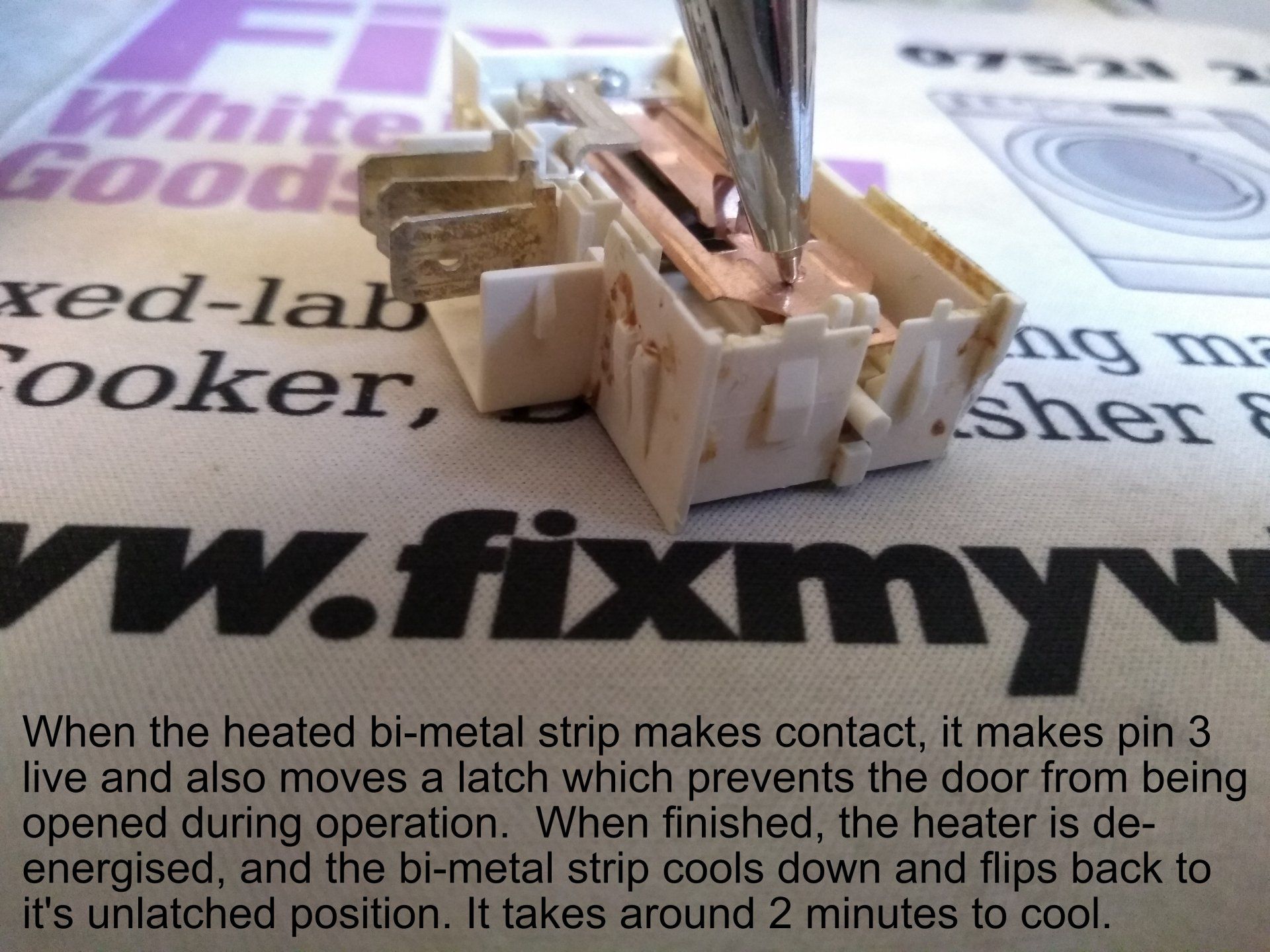

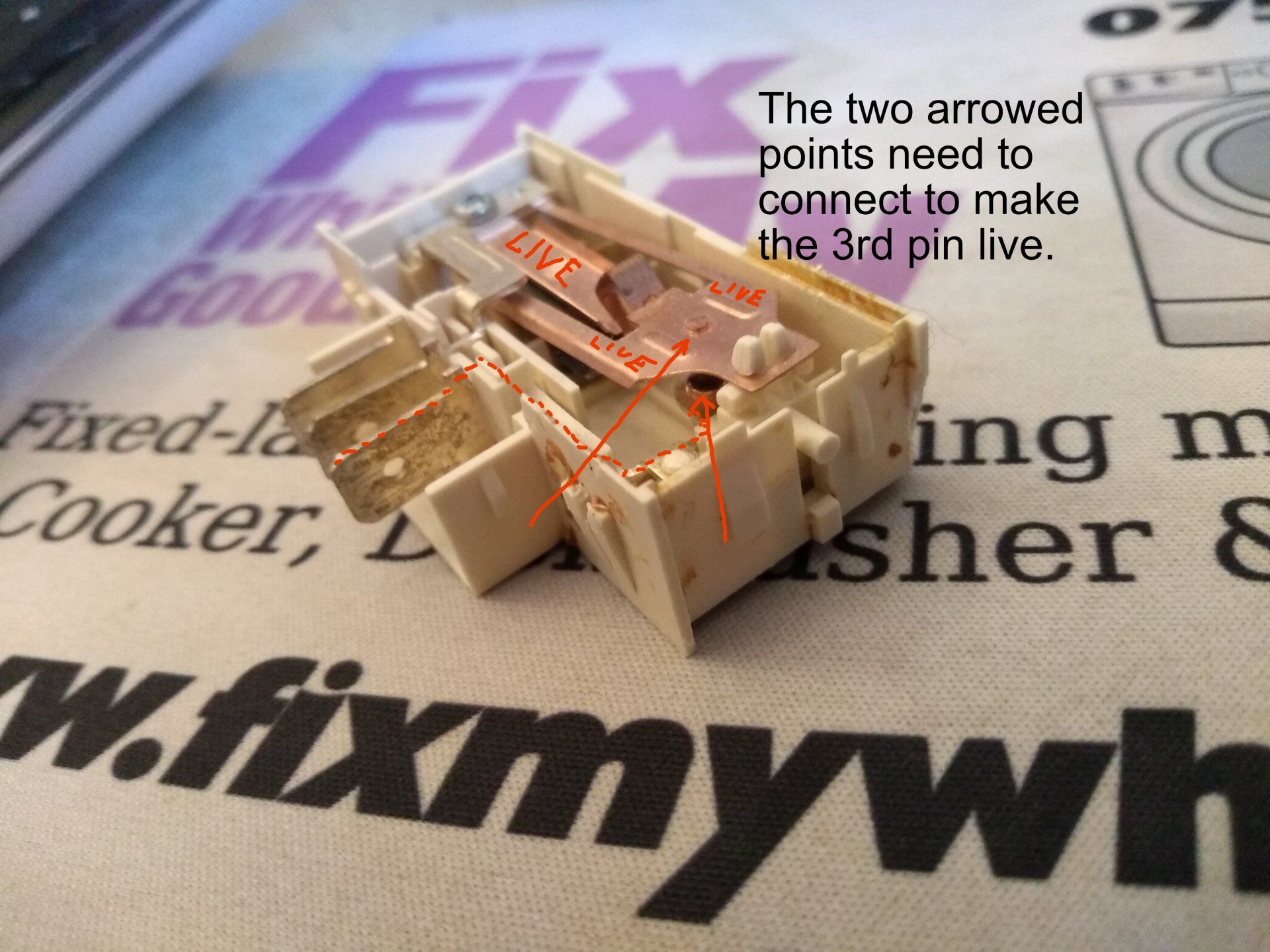

It achieves this by heating a small resistor which bends a bi-metal contact, causing a latch to move into a position which prevents the door from being opened. This movement also causes the live contact to connect with the unconnected pin on the door lock. When this pin becomes live, the machine receives a signal telling it that the door is closed and latched.
On completion of the cycle, power is switched off from the heating resistor, the bi-metal cools down and it springs back into the unlocked position, allowing the door to be opened.

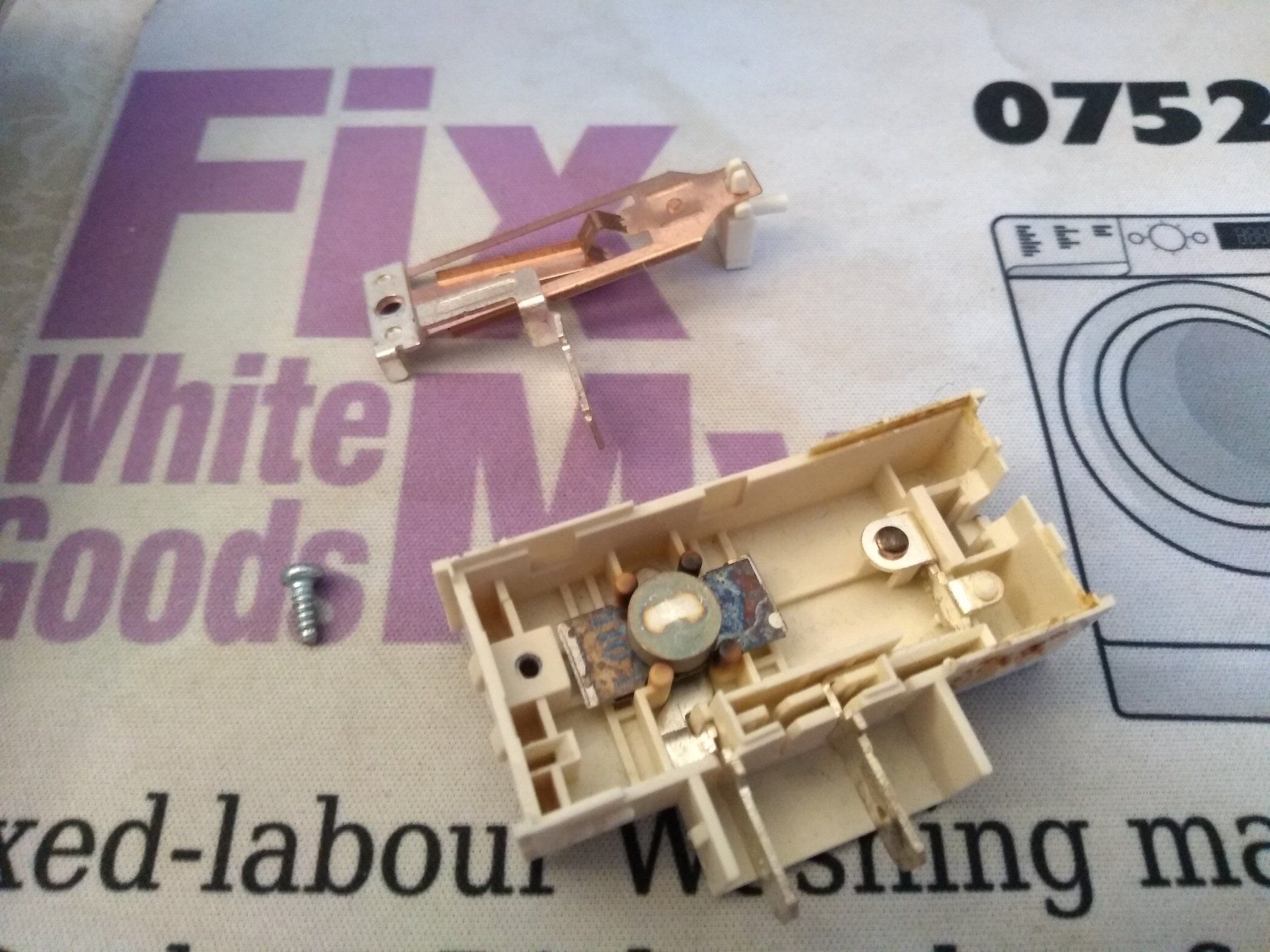

That's the simple explanation, but I've put up some pictures explaining this in greater detail.
There's a real lack of knowledge as to how these work!
